SS0604 Touching stepping dimmer circuit diagram

Published:2011/8/9 20:16:00 Author:Ecco | Keyword: Touching stepping dimmer | From:SeekIC

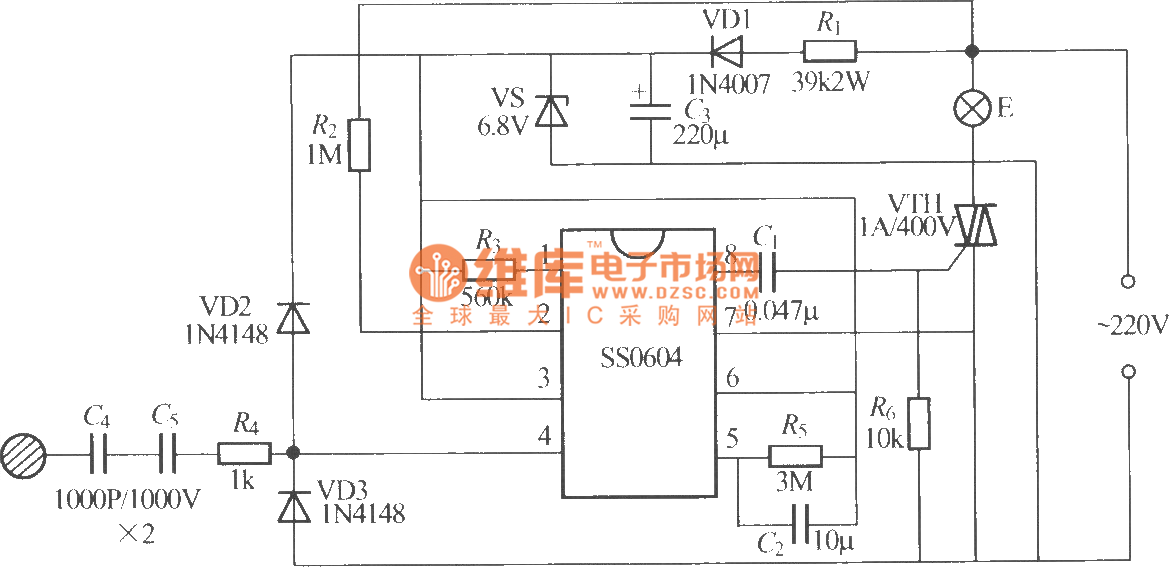

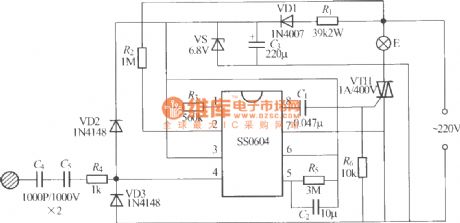

The five-speed four-step touching stepping dimmer shown as the chart is composed of the SS0604 integrated circuit, and touching the M repeatedly, the lamp brightness of E will changein the cycle of low, medium, medium to high, the brightest, turning off ... for the user to select.
