Seven-way flashing light string circuit ( CS71017 )

Published:2012/9/5 22:17:00 Author:Ecco | Keyword: Seven-way , flashing light string | From:SeekIC

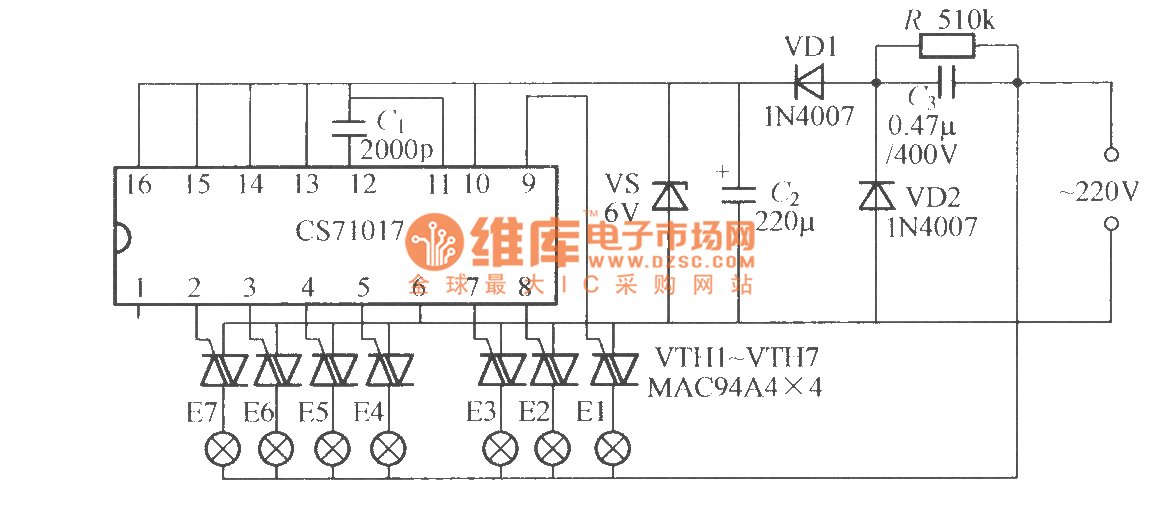

Its flashing mode can be freely programmed. The core device is seven programmable flash integrated circuit CS71017. iN The figure, VTH1 ~ VTH7 shoulduse MAC94A4 small plastic TRIAC with smaller trigger current.
