Single-button digital dimmer light circuit

Published:2012/8/30 20:56:00 Author:Ecco | Keyword: Single-button , digital, dimmer light | From:SeekIC

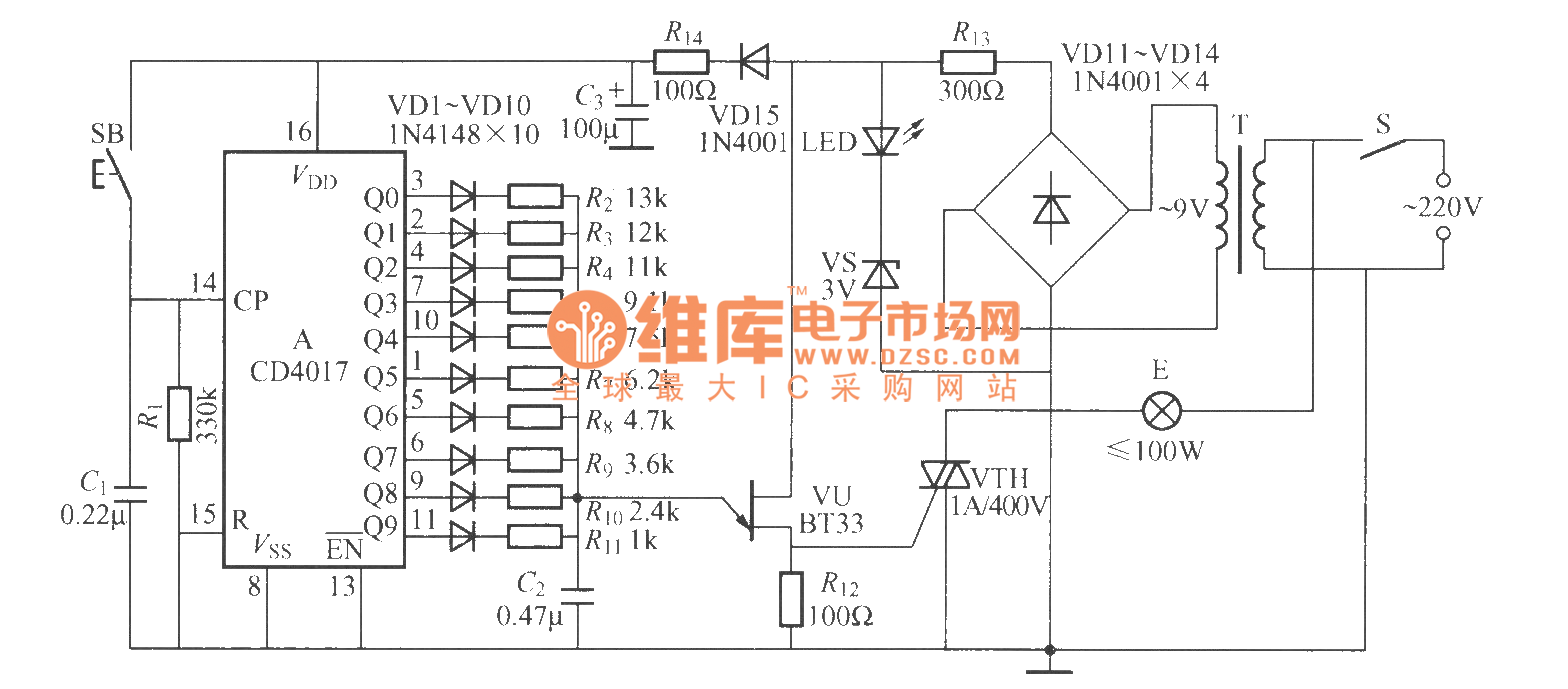

It uses the thyristor trigger circuitcomposed ofCD4017 digital circuitand single-junction transistor,and it hadten block ofadjustable brightness, it is easy to use.
