Six-way flashing light string circuit (2) (HFC3040)

Published:2012/9/5 22:43:00 Author:Ecco | Keyword: Six-way, flashing light string | From:SeekIC

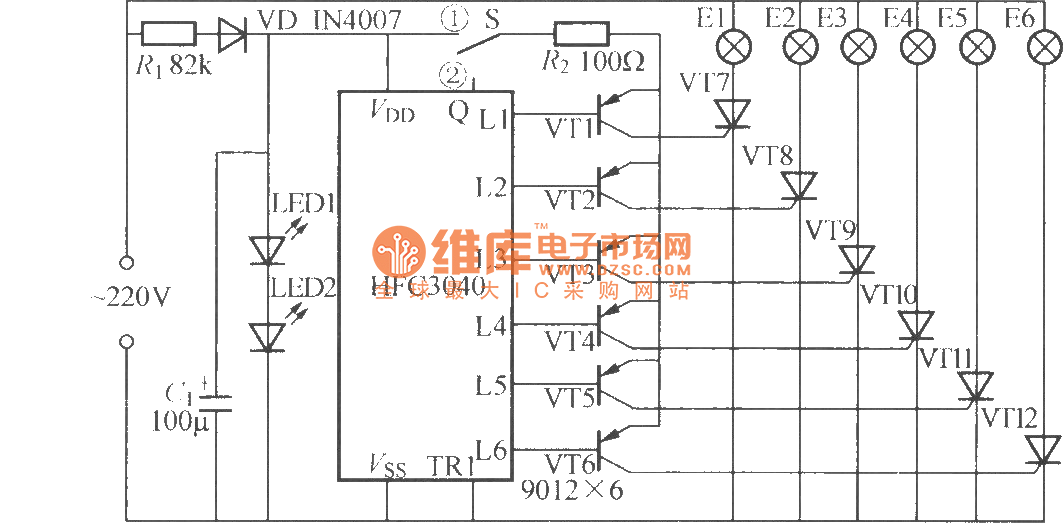

In the figure, LED1, LED2can be usedforboth power indicator and regulator,and itcan choose a common Φ5mm red light-emitting diode. VT7 ~ VT12select MCR100- 8 small plastic one-way thyristor (1A/600V).
