TELEPHONE_RING_FLASHER

Published:2009/7/14 3:41:00 Author:May | From:SeekIC

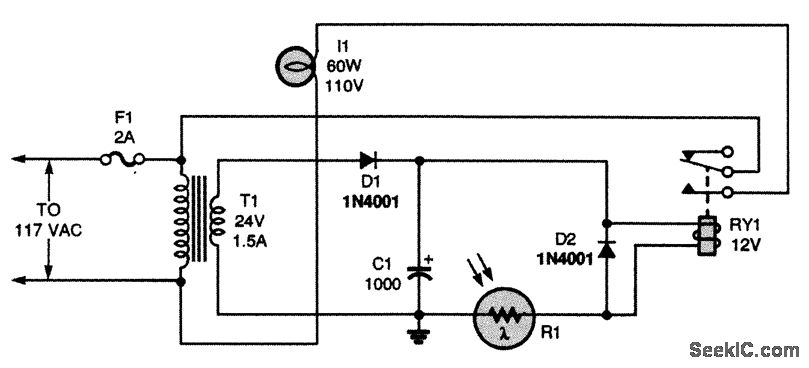

When the phone rings, the flasher turns on and off, causing photocell R1 to conduct. Relay RY1 is then energized, which completes the circuit between the light and the ac line. Thus, the light flashes in step with the rings.
