Ten flash lamp string circuit

Published:2011/7/5 22:22:00 Author:zj | Keyword: Ten flash, lamp string circuit | From:SeekIC

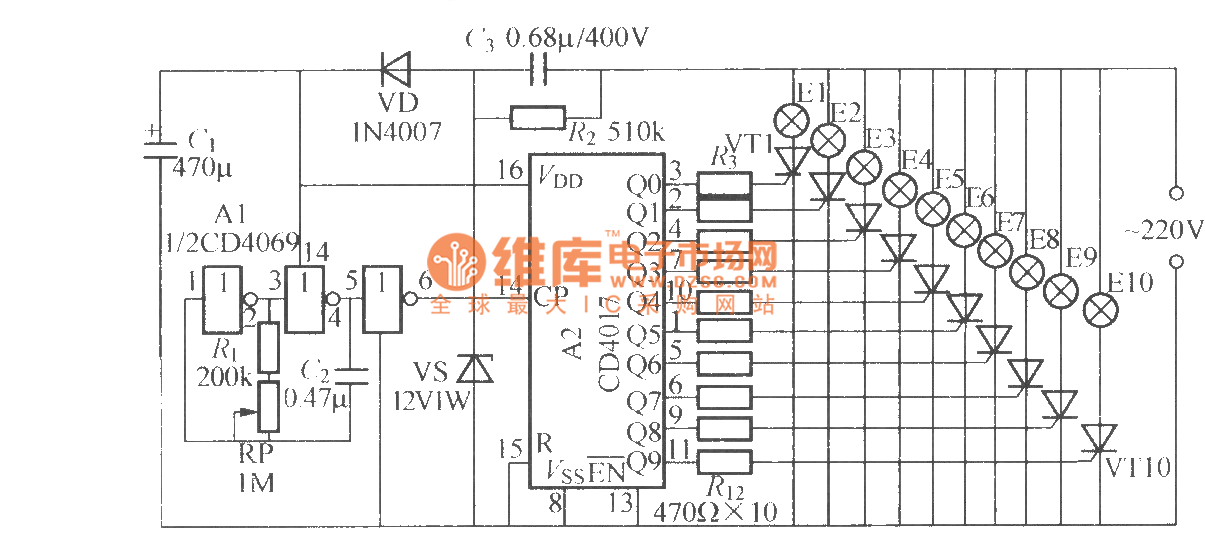

As shown in the figure itis composed of a digital integrated circuit CD4017 consisting of ten flash lamp string controller. VT1 ~ VT10use MCR100-8 type small outline of a unidirectional thyristor.
