The barton automatic fill light circuit

Published:2011/6/27 22:30:00 Author:Ecco | Keyword: barton , automatic, fill light | From:SeekIC

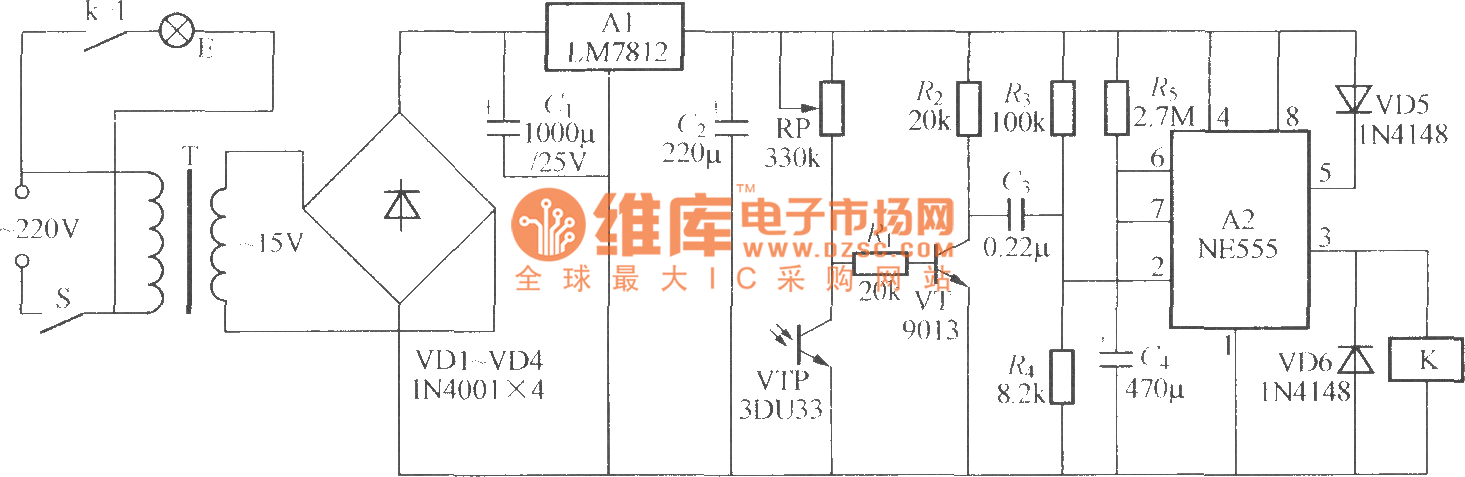

Providing enough light for hens can increase egg production rate. Due to the short sunshine time in winter, the chicken specialized households generally use the artificial method to fill light. Using the circuit shown as the chart is able to automatically fill light, when night comes, the light will automatically turn on about 2h, then turn off, that is , sunshine time extends about 2h. T uses 220V/15V, 8VA small, high quality power transformer; K uses JZC-22F, DC12V small medium power electromagnetic relay.
