Three-way Kala 0K lighting rendering circuit (HL3033)

Published:2012/10/22 2:42:00 Author:Ecco | Keyword: Three-way, Kala 0K, lighting rendering | From:SeekIC

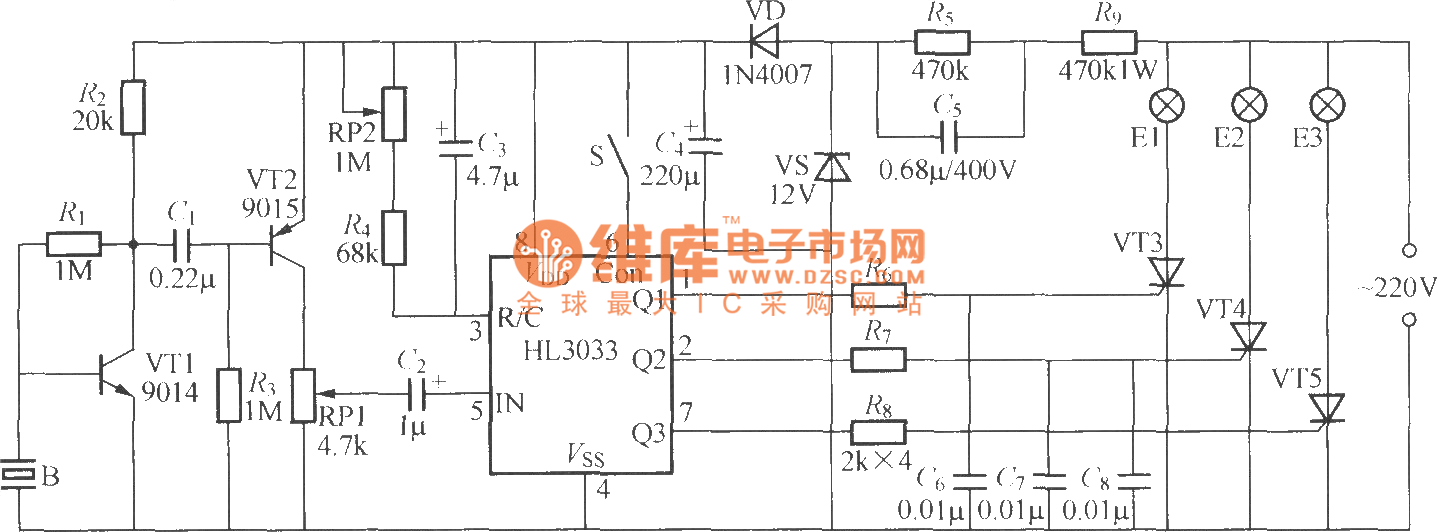

As shown in the figure, it is a Kala 0K lighting rendering controller with audio voltage controlled ASIC HL3033 produced by Wuxi love Silicon microelectronics company. It has a three-way outputs, the flowing speed of the light will change with the loudness of concert, and it can powerfully render concert atmosphere and beautify the indoor environment, so it is very suitable for home Kala 0K concert.
