Three-way flashing light string circuit (3 )

Published:2012/9/4 22:47:00 Author:Ecco | Keyword: Three-way , flashing light string | From:SeekIC

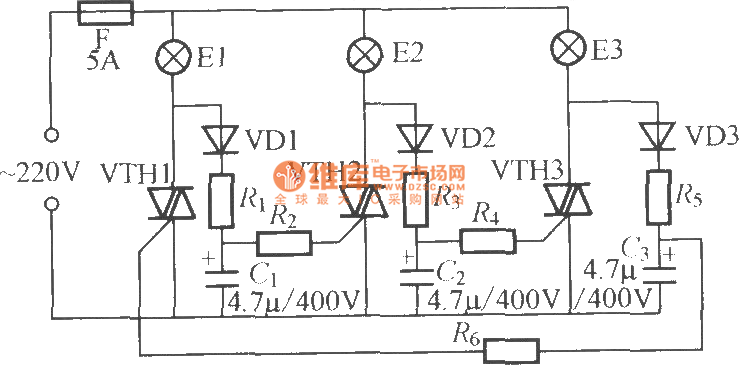

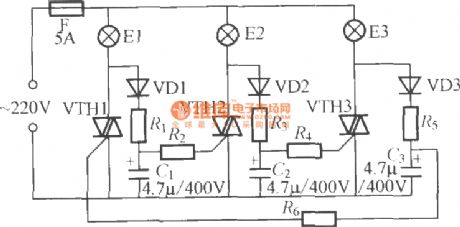

As shown in figure, it uses three-way flashing light string controller with three ordinary TRIACs, and it can make light string be lit in a cycle, the maximum output power of each road is up to 1000W, and the circuit is simple and easy to produce. VTH1 ~ VTH3 use 5A, 600V TRIAC, the maximum load power is up to 1000W ; VD1~VD3 can use 1N4007 ordinary silicon rectifier diodes.
