Touching adjustable timing light circuit (1)

Published:2011/7/1 2:50:00 Author:Ecco | Keyword: Touching , adjustable , timing light | From:SeekIC

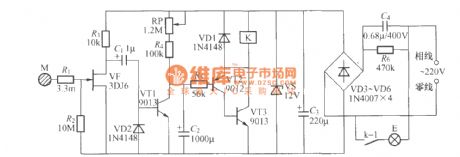

The chart shows a practical touching adjustable timing light circuit with timer time being adjustable in 1h. As long as alarm time reached, the light E is turned off, it can be used to time and turn off lights and other housing appliances.
