Warning_flasher_light

Published:2009/7/19 23:26:00 Author:Jessie | From:SeekIC

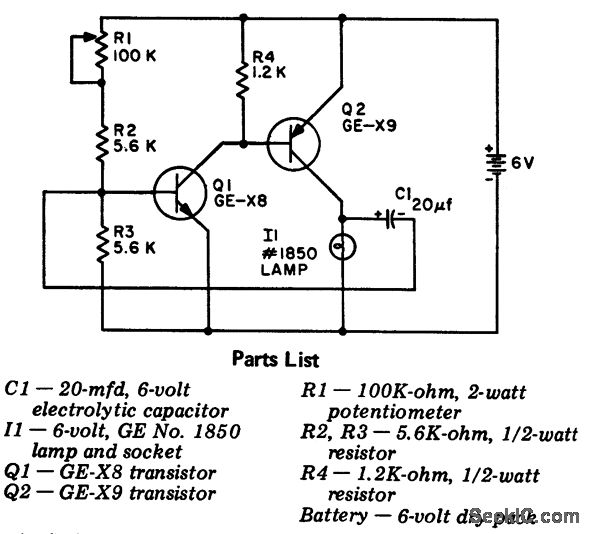

Warning flasher light. This device is handy to have around boats, cars, and camp sites. The circuit is a two-stage direct-coupled transistor amplifier connected as a free-running multivibrator. Both flash duration and flash interval can be adjusted by R1 (courtesy General Electric Company).
