infrared remote control time-lapse lamp circuit

Published:2011/7/8 20:45:00 Author:Lena | Keyword: infrared, remote control, time-lapse lamp | From:SeekIC

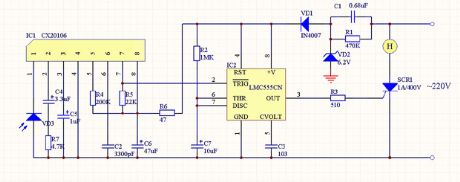

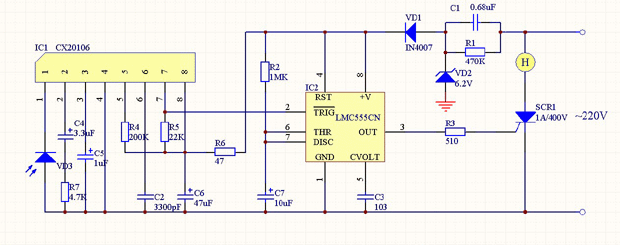

Infrared remote control time-lapse lampInfrared remote control time-lapse lamp is applied to casual situation in night. This illumination will not need to be turned off by remote controller, and will auto be turned off by set delayed circuit in internal circuit. Delayed time usually can be set as 1-2MIN, the operation can adopt infrared remote control emitter without modulation signal to realize.Circuit principle:This circuit can consist of infrared receiver, Uni-stable state delayed circuit and controlled silicon circuit.
