light control flash safety lights circuit

Published:2011/5/15 2:26:00 Author:John | Keyword: safety light | From:SeekIC

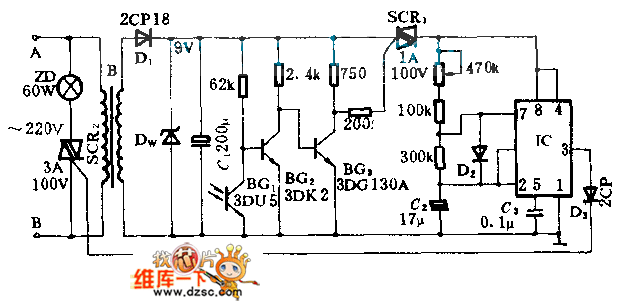

This circuit applies to safety lights in the construction site. At the construction site, the two points A and B is put in the grid. The electricity of 220V is stepped-down by transformer B and the diode D1. Afterwards, the electricity passes through rectifier DW and filter C1 filter. Then, the DC electricity of 9V is provided to a photoelectric switch. DW affects well as a dual role of a rectifier and a regulator. During the day under strong light, photoelectric switch blocks. SCR1 has no trigger current, being in the off state. And the red signal ZD light does not shine. When in the night, photoelectric switch is in the on state. The oscillator circuit composed by IC and other components opens to work. Ultra-low frequency rectangular pulse is output by the IC constantly. SCR2 opens under this high pulse conduction and closes in the low level. As a result, the twinkling lights can be seen.
