20_KC_RING_COUNTER

Published:2009/7/14 4:07:00 Author:May | From:SeekIC

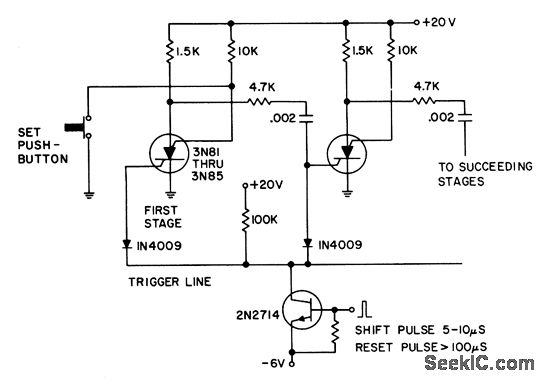

Shift pulses turns off conducting sillicon controlled switch by reverse-biasing cathode gate. Charge stored on coupling capacitor then triggers next gate.- Transistor Manual, Seventh Edition, General Electric Co. 1964, p 431.
