3LIGHT_METER

Published:2009/6/25 2:27:00 Author:Jessie | From:SeekIC

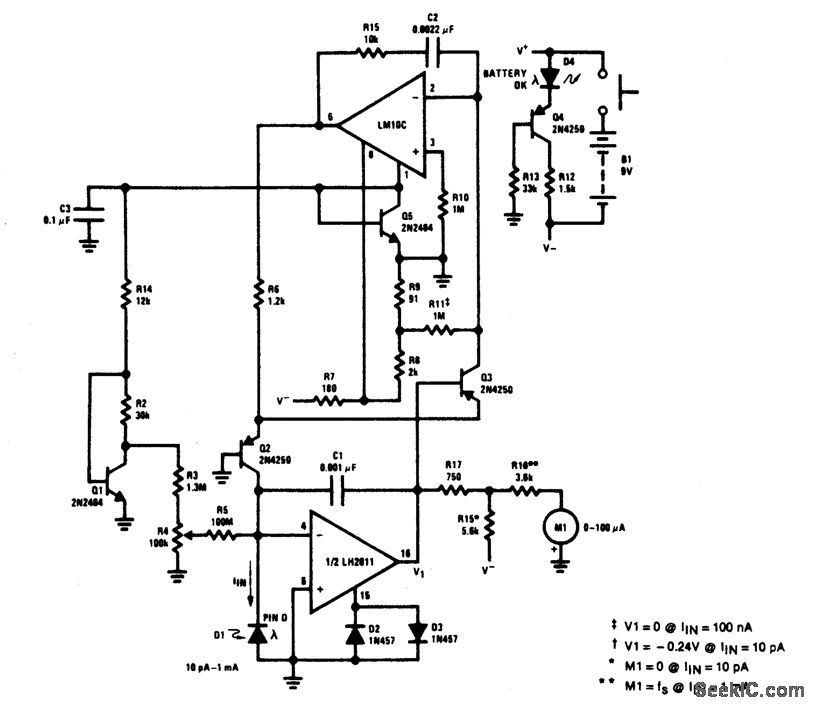

This light meter has an eight-decade range. Bias current compensation can give input current resolution of better than ±2 pA over 15 ℃ to 55℃.
