40_MHz_UNIVERSAL_COUNTER

Published:2009/7/7 6:21:00 Author:May | From:SeekIC

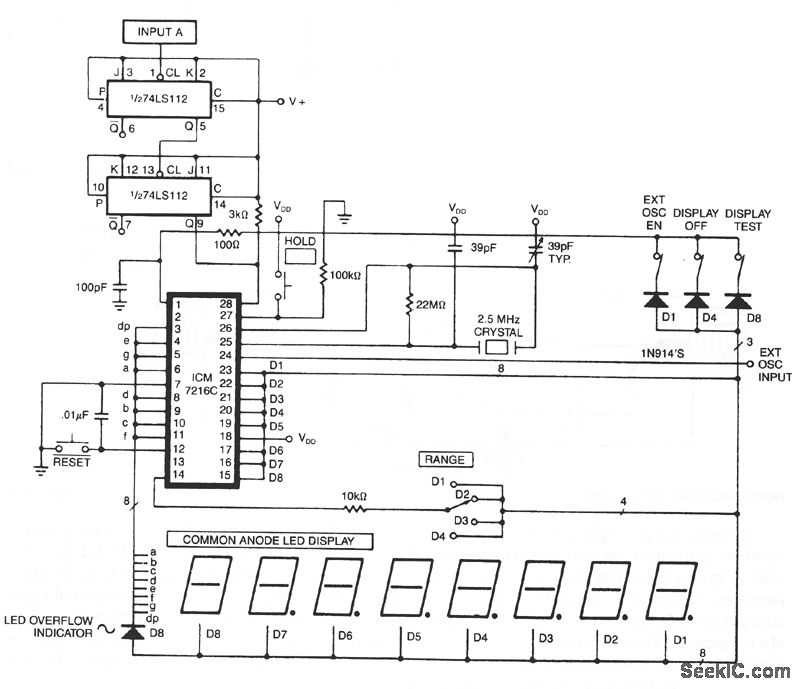

This circuit can be used to measure frequencies up to 40 MHz. To obtain the correct measured value, it is necessary to divide the oscillator frequency and the input frequency by four. In doing this, the time between measurements is also lengthened to 800 ms and the display multiplex rate is decreased to 125 Hz.
