4-20ma Current Loop Tester

Published:2012/9/5 20:36:00 Author:Ecco | Keyword: 4-20ma, Current Loop , Tester | From:SeekIC

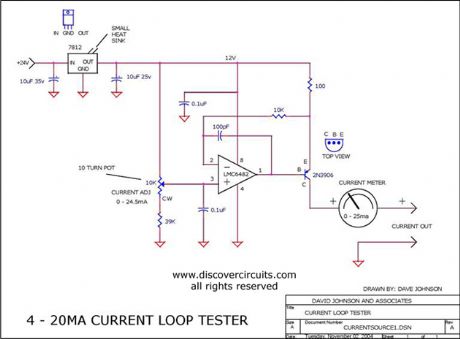

This circuit injects an adjustable current through a wire loop. Using a digital current meter, the current can be adjusted from near zero to over 24 milliamps. Source: discovercircuits
