Published:2009/6/30 21:24:00 Author:May | From:SeekIC

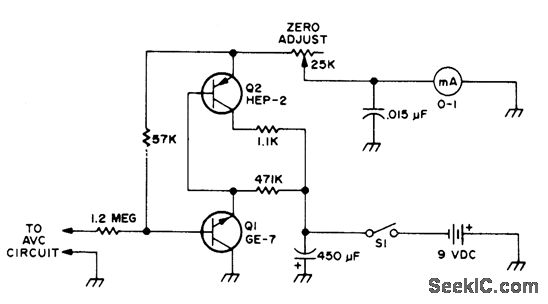

Circuit works well with most all-band receivors．Q1 may also be SK3011,NR5, TR-10,or DS75.Q2 may also beHE1,SK-3005, or TR-06. Value of 1.2-megohm input resistor may need to be adjusted depending on AVC voltage,to prevent strong signals from overloading meter.- Novice Q & A, 73 Magazine, Feb 1977,p 127.
