ADD_ON_FM_DETECTOR_

Published:2009/7/2 23:24:00 Author:May | From:SeekIC

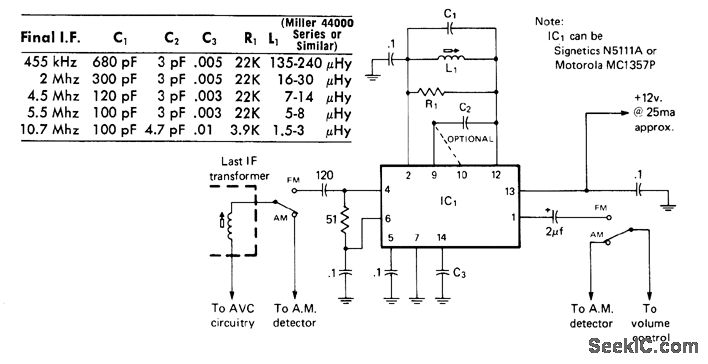

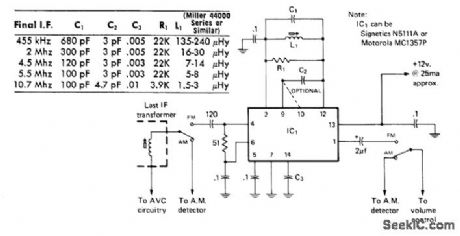

Suitable for any communication receiver. Other IF values can be handled by changing values of L and C. Connecting C2 to pin t0 instead of pin 9 may improve performance. Circuit is easy to construct and align; adjust slug-tuned coil for maximum recovered audio when receMng FM signal.-l. Math, Math's Notes, CQ, April 1975, p 37-38 and 62.
