ADJUSTABLE_CONTINUITY_TESTER

Published:2009/6/22 23:34:00 Author:May | From:SeekIC

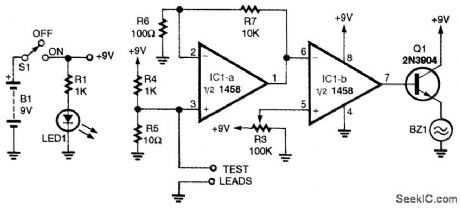

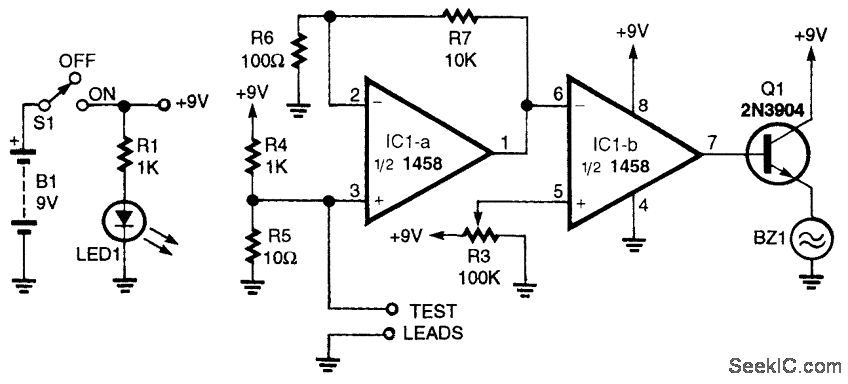

A problem with most continuity testers is that the exact decision point (circuit resistance) be-tween continuity and open is indefinite. This circuit allows setting of this point to a known resistance between 1 and 50Ω.
