AIR_FLOW_DETECTOR

Published:2009/6/15 22:39:00 Author:May | From:SeekIC

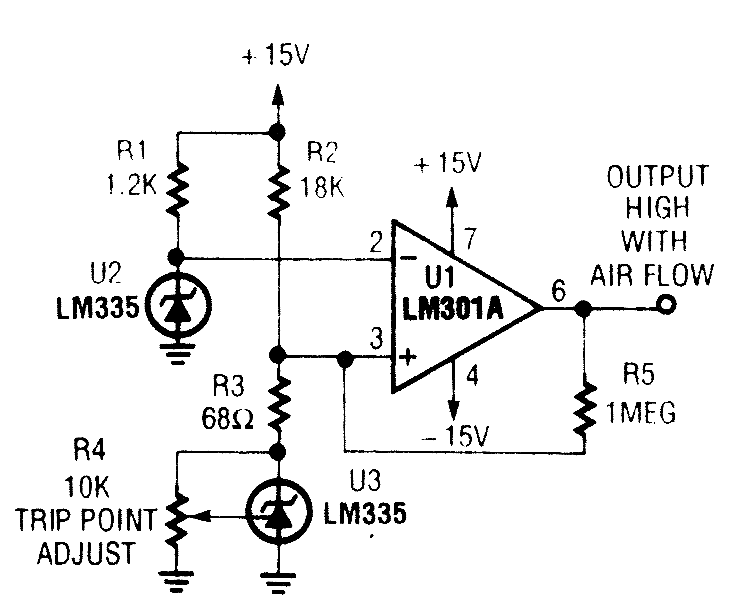

Two precision temperature sensors are used to detect a small temperature difference. When air flow occurs, self-heating of the LM335 is re-duced, and the output of the two temperature sensors is unequal. This is amplified by U1.
