ANALOG_EXPANDED_SCALE_METER_FOR_AUTOS

Published:2009/7/9 3:52:00 Author:May | From:SeekIC

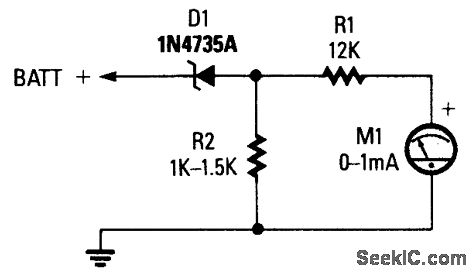

Zener diode D1 is used to suppress the ftrst 6 V of the scale, which gives a meter reading of 6 to 8 V-useful for automotive electrical system monitoring.
