ANALOG_TACHOMETER_CIRCUIT

Published:2009/6/19 2:41:00 Author:May | From:SeekIC

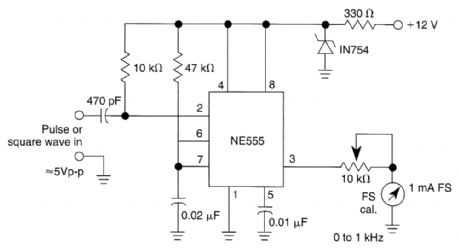

In this tachometer circuit a 555 is used as a pulse shaper. The dc value of the integrated pulse train is read by M1 which is calibrated to read frequency. With the values shown, the meter will read 0-1 kHz.
