AUTO_FUSE_MONITOR

Published:2009/6/16 3:00:00 Author:May | From:SeekIC

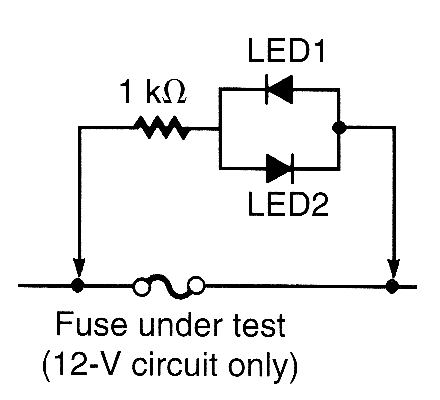

This circuit can quickly check a fuse in an automobile circuit. Connect across suspected fuse-either LED glows, fuse is blown. The circuit must be live for this test to work.
