Audio VU Meter circuit

Published:2012/11/19 21:46:00 Author:muriel | Keyword: Audio, VU Meter circuit | From:SeekIC

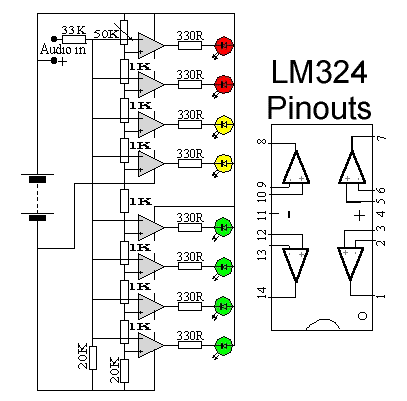

This circuit uses two quad op-amps to form an eight LED audio level meter. The op-amp used in this particular circuit is the LM324. It is a popular IC and should be available from many parts stores.
