BFO metal Detector Circuit with IC 4093

Published:2012/9/13 21:06:00 Author:Ecco | Keyword: BFO, metal Detector, IC | From:SeekIC

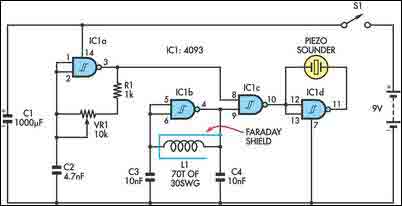

The circuit incorporates two oscillators, both operating at about 40kHz. The first, IC1a, is a standard CMOS oscillator with its frequency adjustable via VR1. The frequency of the second, IC1b, is highly dependent on the inductance of coil L1, so that its frequency shifts in the presence of metal. L1 is 70 turns of 0.315mm enamelled copper wire wound on a 120mm diameter former. Source: NEXT.GR
