BIDIRECTIONAL_MULTIDECADE_COUNTER

Published:2009/7/14 1:51:00 Author:May | From:SeekIC

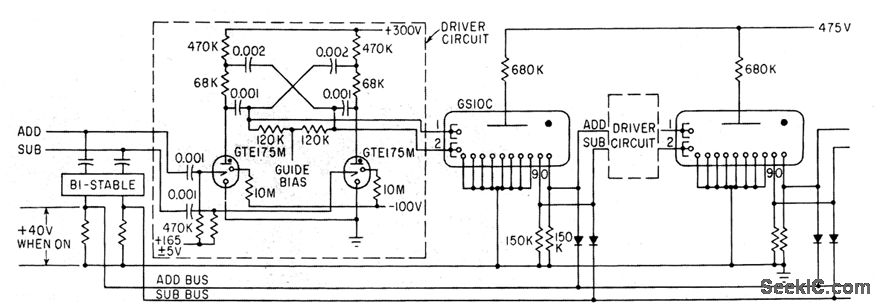

Single sign-determining circuit of input to tens stage provides gating signals for every decade, to handle rapid reversal of count direction.-L. C. Burnett, Reversible Decade Counter, Electronics, 35:9, p 46.
