BIQUINARY_COUNTER_WITH_READOUT

Published:2009/7/13 22:13:00 Author:May | From:SeekIC

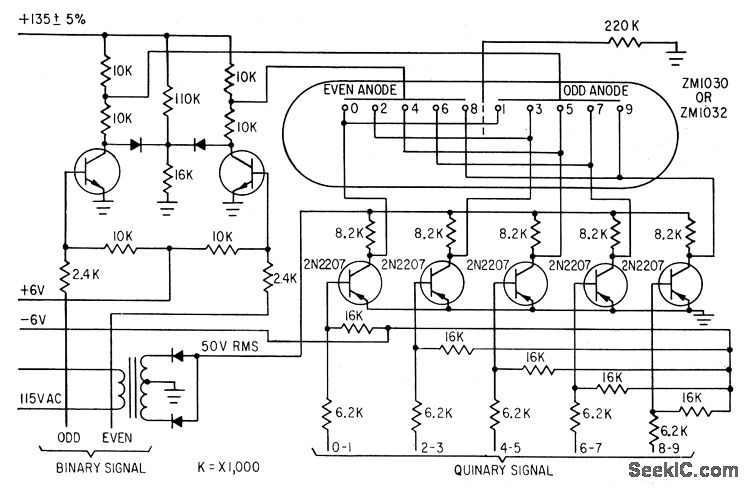

Simplified driver circuits require only seven transistor rather ten, when used with special Amperex ZMl032 tube.-Biquinary Indicator Uses 7 Transistors, Electronics, 36:28, p58.
