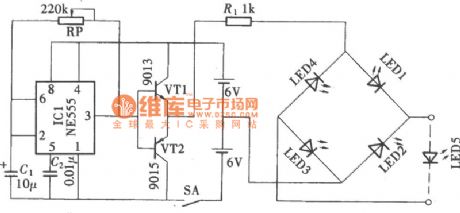

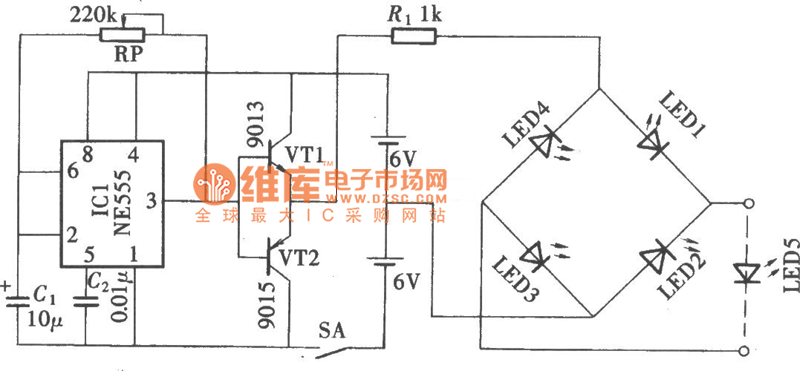

Bridge rectifier demonstrator circuit is a AC/DC conversion circuit. Bridge rectifier demonstrator circuit shown as in the picture reveals how the two groups of communication diode works in turn in the bridge rectifier circuit. It is made of pulse generator circuit, current direction control circuit, demonstrator circuit and power supply.
