CONTINUITY TESTER Circuit

Published:2013/3/4 21:35:00 Author:Ecco | Keyword: CONTINUITY TESTER | From:SeekIC

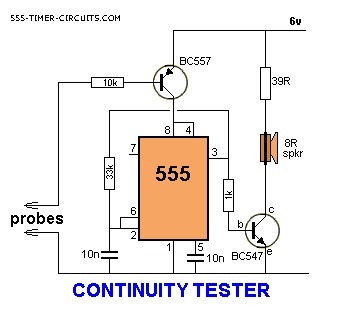

This circuit will detect low resistances and high resistances to produce a tone from the speaker. It will detect up to 200k and the circuit automatically turns off when the probes are not used.
