CONTINUITY_TESTER_FOR_LOW_RESISTANCE_CIRCUITS

Published:2009/6/17 22:28:00 Author:May | From:SeekIC

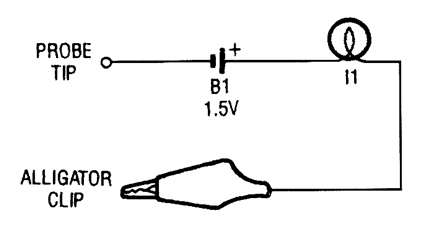

The continuity tester is little more than a battery and a lamp connected in series, with one end of the string terminated in an alligator clip, and the other end connected to the probe tip.
