CURRENT_AMPLITUDE_DETECTOR

Published:2009/7/14 4:32:00 Author:May | From:SeekIC

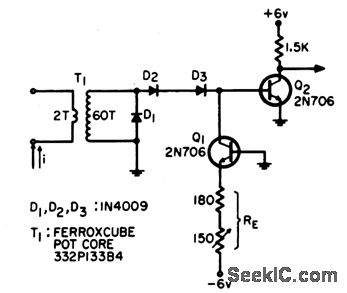

Used to indicate when pulsed drive currents for memory array exceed tolerance limits. Can detect current pulse deviation of 10 ma from 1.2-amp current Amplitude Detector, EEE.12:11,p68-70 .
