Capacitance Charge and Discharge Demonstrator Circuit Diagram

Published:2011/6/15 8:21:00 Author:Vicky | Keyword: Capacitance Charge and Discharge Demonstrator | From:SeekIC

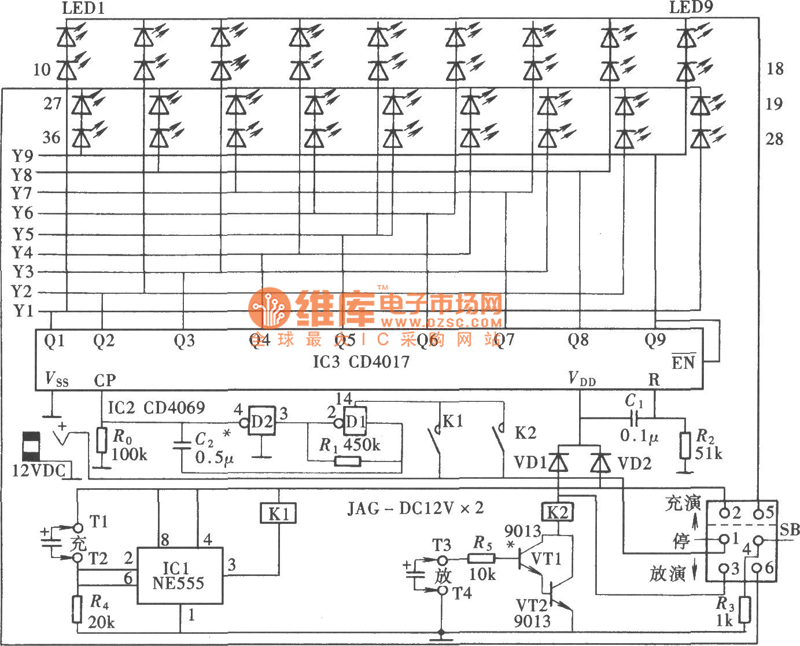

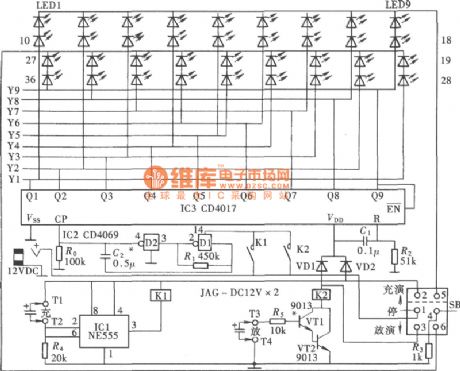

Capacitance Charge and Discharge Demonstrator is mainly used to demonstrate the changing of the curves of voltage at the two ends of the capacitance and the discharge current as the pass of time when the capacitance is in the processions of charging and discharging. The following picture is a demonstration circuit. It adopts the way of displaying by the luminosity aroused by flow of the luminous diode, and it is vivid and visual , and very close to the actual procession of charging or discharging , which is of great practical value.
