Ceramic Crystal Detector Circuit Diagram

Published:2011/6/9 4:08:00 Author:Vicky | Keyword: Ceramic Crystal Detector | From:SeekIC

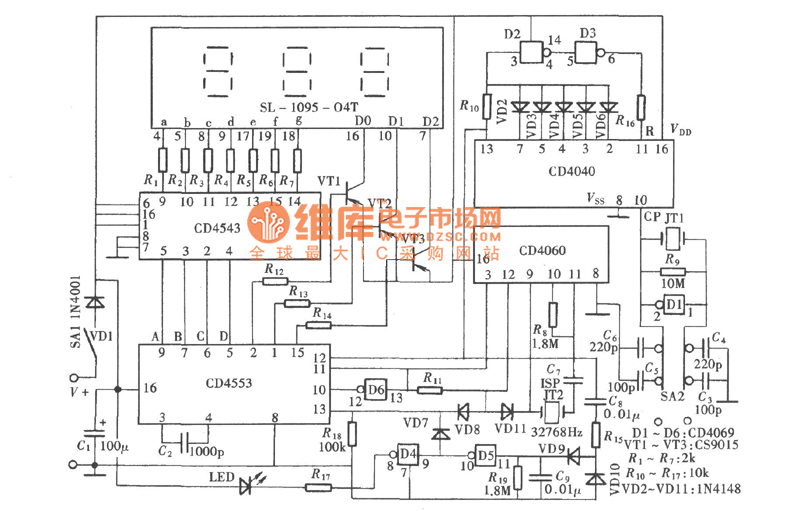

Ceramic crystal is crystal-type oscillator component used by infrared remote control launcher. The spoilage rate is comparatively high , and it is usually difficult to judge whether it is good or not in repairing. The detector as shown in the picture can quickly determine whether good or bad, which provides great convenience for repairing. The ceramic crystal detector actually is a three digit explicit frequency indicator, and the unit is KHz.
