DC capacitor tester with 555

Published:2013/1/23 2:36:00 Author:Ecco | Keyword: DC capacitor tester, 555 | From:SeekIC

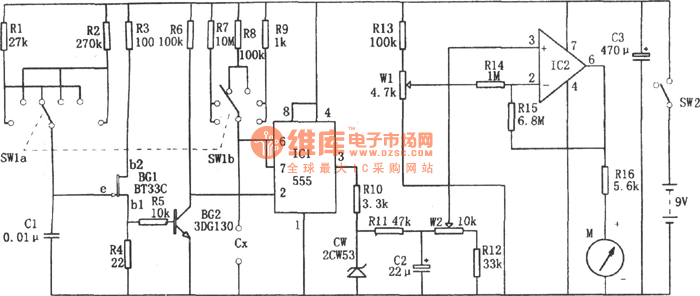

The tester is composed of the pulse generator, monostable trigger, DC amplifier and header indicating circuit. It can measure npF to 10μF capacitance. The range is divided into 0 ~ 100PF, 0 ~ 1nF, 0 ~ 10nF, 0 ~ 100nF, 0 ~ 1μF, 0 ~ 10μF.
