DOWN_TO_005_OHM

Published:2009/7/20 20:40:00 Author:Jessie | From:SeekIC

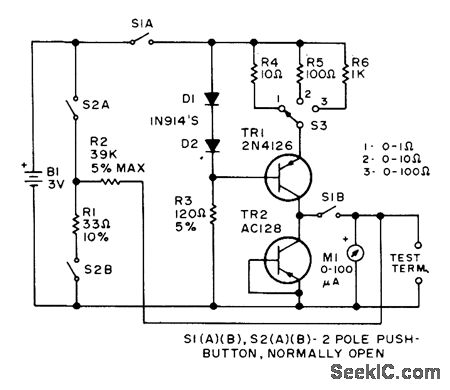

Switch S3 gives choice of three ranges in linear ohmmeter circuit developed for measuring very small values of resistance. Values of R4, R5, and R6 require adjustment during initial calibration.-Circuits, 73 Magazine, June 1975, p 161.
