DVM_ADAPTER_FOR_PC

Published:2009/6/17 22:10:00 Author:May | From:SeekIC

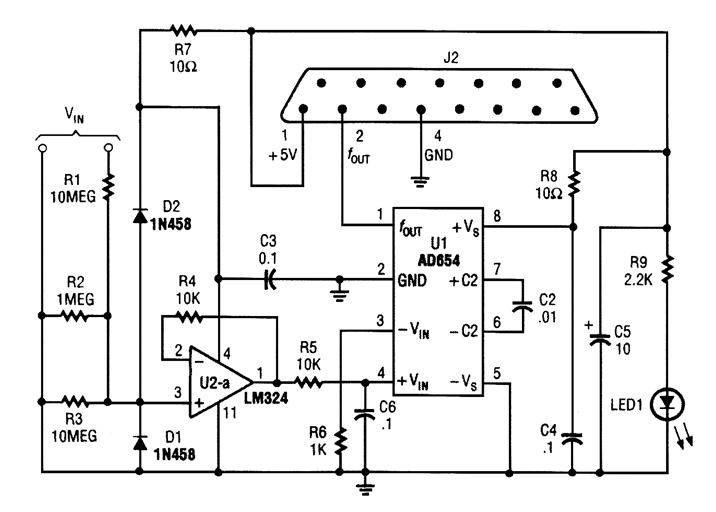

The adapter consists of a voltage to frequency adapter with a signal conditioner and protection circuit. J2 connects to the game port of a PC. See reference listed for software for use with this circuit.
