David Moran capacitor meter project

Published:2012/9/24 4:08:00 Author:muriel | Keyword: David Moran, capacitor meter | From:SeekIC

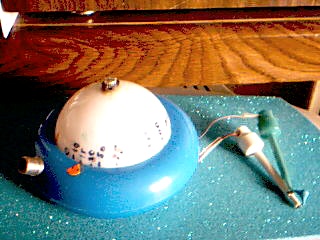

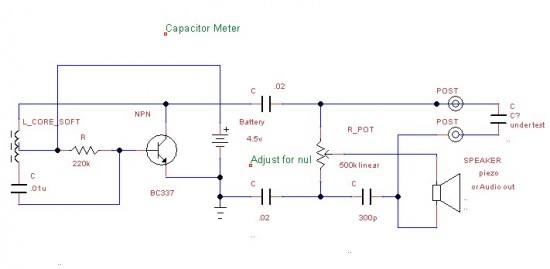

Hi guys, I just received an email from David Moran and he sent me his capacitor meter project with pictures and a little presentation. Here are the details and schematic. Here is the schematic of my capacitor meter I built and have used quite a bit. It will measure from zero to 0.1uf with 300pf at mid range. It is an oscillator that makes noise fed into a bridge circuit that will null out the noise when balanced. Once built, you must clip in known value capacitors and hand calibrate the dial.I built my unit into a cheap push on battery light the output can go to a small audio amp, audio input of a computer, or try a piezo speaker. The noise is rather annoying, so you may want to use a scope to view it if you must test many capacitors. Capacitor meter schematic And here is a picture with the finished project: Thank you David, you’ve done a great job!? 2 Responses to “David Moran capacitor meter project”
