FLIP_FLIP_RING_COUNTER

Published:2009/7/14 4:09:00 Author:May | From:SeekIC

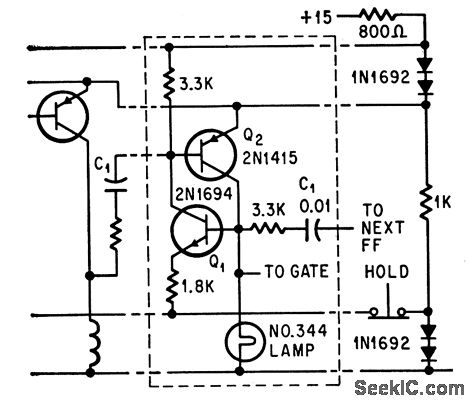

Complementary mvbr, in which Q1 and Q2 are either both on or both off, gives low power drain. Strong negative pulse applied to base of Q2 of first stage gives reset.-J. E. Russell, Ten Signals at a Glance, Electronics, 37:19, p 54-57.
