Five_in_one_op_amp_specs_test_circuit

Published:2009/7/19 20:47:00 Author:Jessie | From:SeekIC

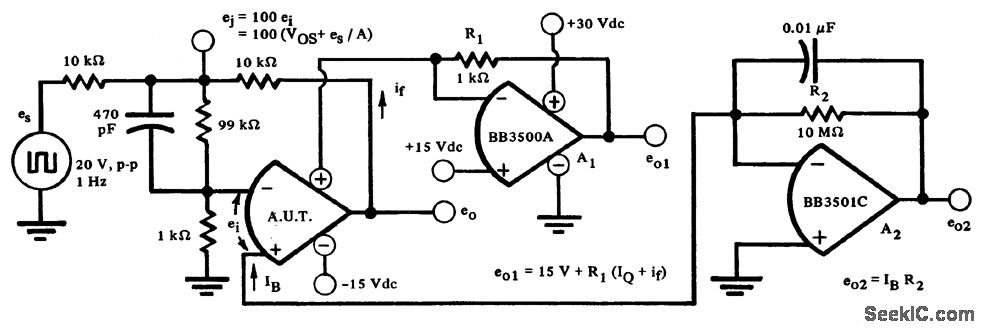

Five-in-one op amp specs test circuit. Tests can be made for open-loop gain, offset voltage, input bias current, quiescent current and output voltage swing (courtesy Burr-Brown Research Corporation).
