HIGH_SPEED_BCD_COUNTER

Published:2009/7/13 23:28:00 Author:May | From:SeekIC

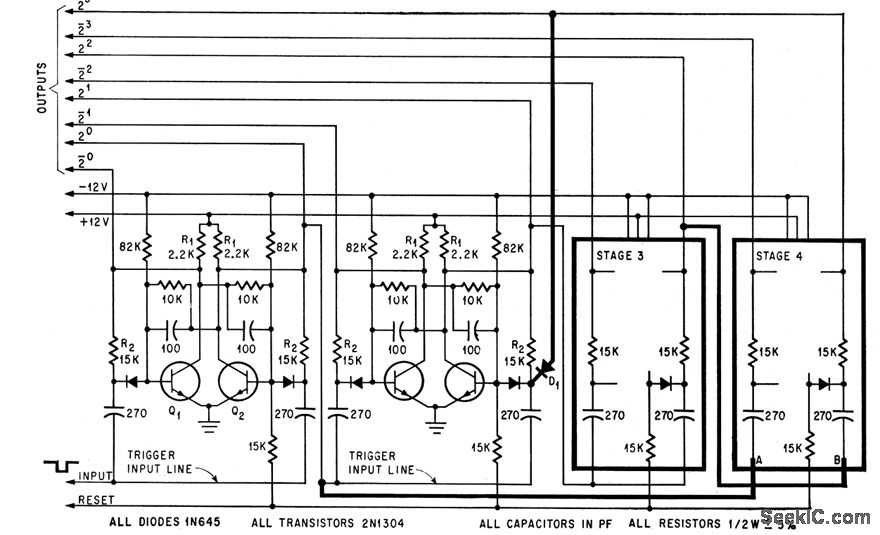

Elimination of capacitively coupled feedback increases operating speed to, maximum repetition rate of flip-flop stages. By modifying circuit as shown in heavy lines and adding diode D1, circuit returns to initial state at count of 10 rather than 16.-P. Ward. Modified Decade Counter Eliminates Components. Electronics.38:25,p74-75
