Infrared Light Photo-Detector Circuit

Published:2013/6/6 20:31:00 Author:muriel | Keyword: Infrared Light , Photo-Detector Circuit | From:SeekIC

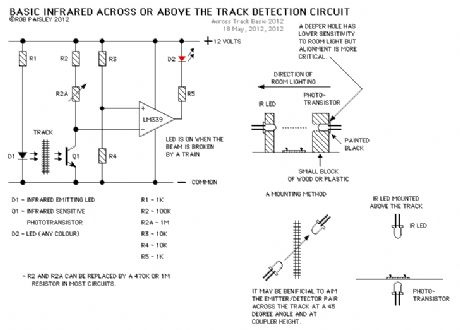

In this circuit the light falling on the phototransistor will be from an Infrared Light Emitting Diode (IrLED) but otherwise it is the same as the phototransistor circuit shown above. When the light falling on the phototransistor (Q1) is blocked, its conductance will decrease and the voltage across Q1 will rise. When the voltage rises above 1/2 of the supply voltage the output of the comparator will turn ON and the LED will be lit.
