KELVIN_CONNECTION

Published:2009/7/16 2:28:00 Author:Jessie | From:SeekIC

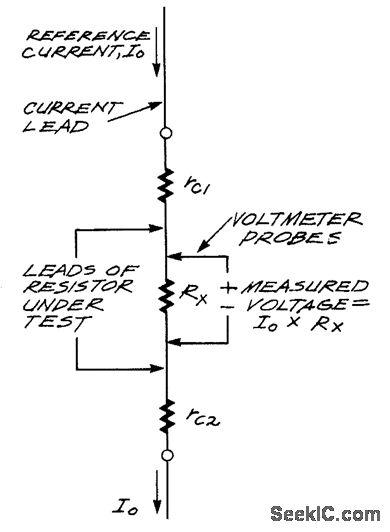

For low-resistance measurements, contact and test lead resistance introduce errors. This figure shows the way to avoid these. Current is applied through test leads, but separate leads are used to read voltage drop.
