LIGHT_DETECTOR

Published:2009/7/10 2:06:00 Author:May | From:SeekIC

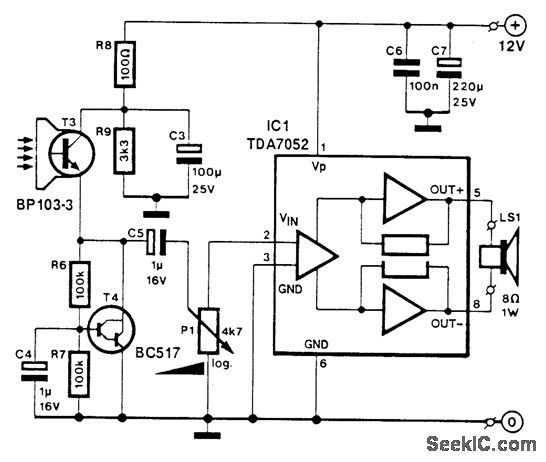

T3 is a photocell or phototransistor. T4controls the emitter voltage of T3. IC1 is an audio amplifier to provide amplification of the signal from the photocell.
