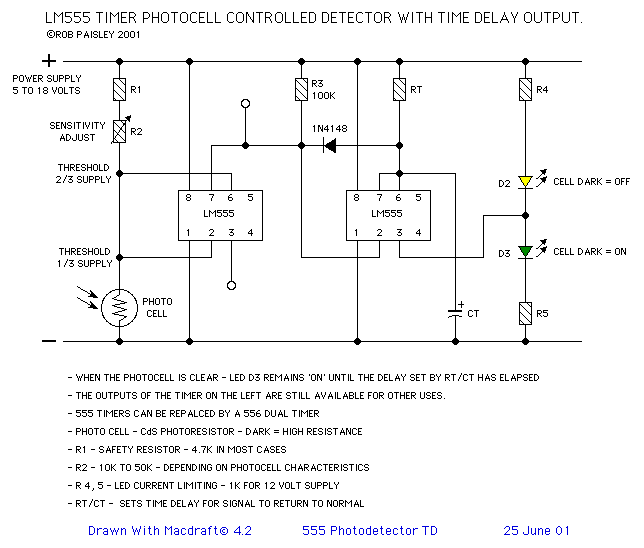

LM 555 Photo-Detector With Delayed Release

Published:2013/6/18 3:47:00 Author:muriel | Keyword: LM 555, Photo-Detector , Delayed Release | From:SeekIC

Print this Page | Comments | Reading(3)

To evaluate my
Code:
