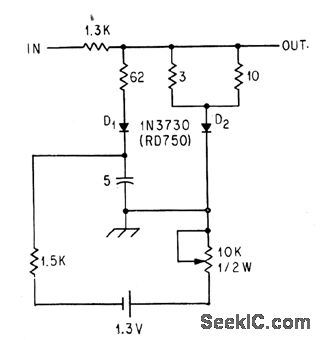

LOG_ATTENUATOR_FOR_POSITIVE_PULSES

Published:2009/7/17 2:25:00 Author:Jessie | From:SeekIC

Output is proportional to log of input voltages between 0.1 and 100 V.-C. D. Nail, Logarithmic Attenuator Spans Three Decades, Electronics, 36:46, p 47-48.
