LIE_DETECTOR

Published:2009/7/1 0:33:00 Author:May | From:SeekIC

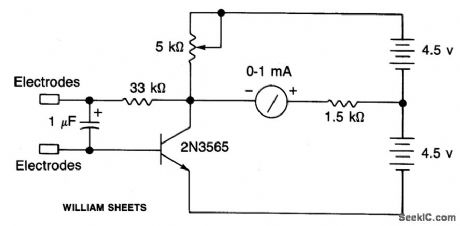

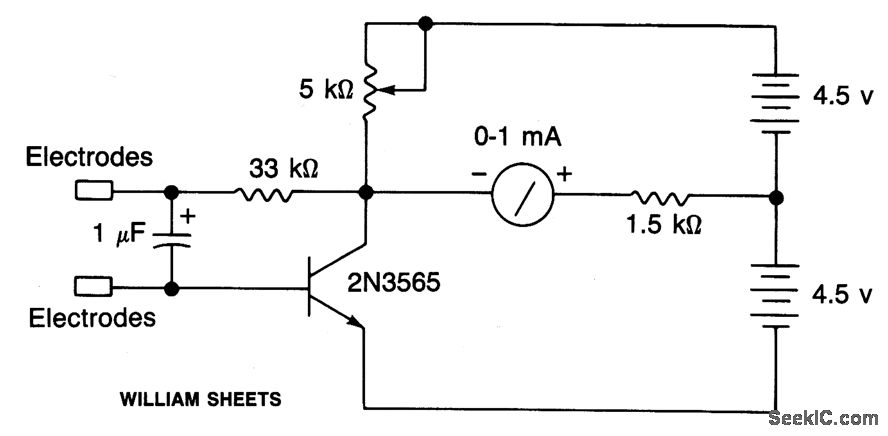

The two probes shown are held in the hands and the skin resistance applies bias to the transistor. The 5 k ohm pot is set for zero deflection on the meter. When the subject is embarrassed or lies, sweating on the hands takes place, increasing the bias to the transistor and upsetting the bridge balance.
