MAGNETIC_TAPE_FLUTTER

Published:2009/7/17 2:19:00 Author:Jessie | From:SeekIC

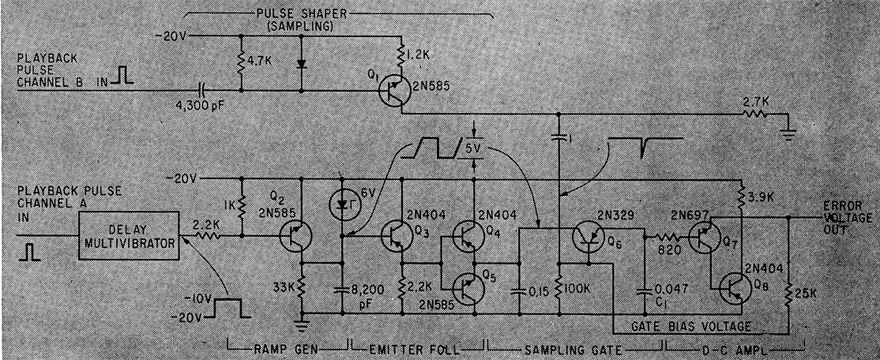

Time of travel of recorded pulse between two playback heads on lope recorder under lest is converted to d-c voltage. Boxcar detection circuit, ramp generator, and sampling gate detect flutter components as small as 0.01 % peak-topeak.-A. Schulback, Instantaneous Measurement of Tape Flutter, Electronics, 35:19, p 93-94.
