MOTORCYOLE_HEADLIGHT_MONITOR

Published:2009/6/19 2:37:00 Author:May | From:SeekIC

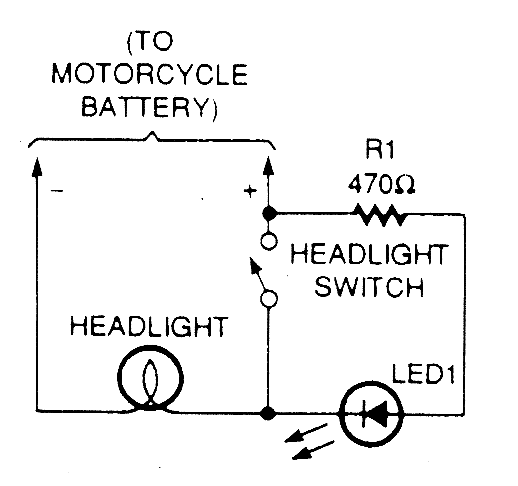

The headlight on most newer bikes is keyed on with the ignition switch to guarantee that you are never underway without your headlight be-ing on. However, many older bikes have a fac-tory headlight switch, and a growing number of the newer bikes are owner-modified in the same way.A simple headlight monitor circuit consists of just an LED and a current-limiting resistor wired across the headlight switch, as shown.When the ignition is on and the headlight switch is off, the LED will glow.
