MULTIJUNCTION_SEMICONDUCTOR_AS_DECADE_COUNTER

Published:2009/7/13 21:56:00 Author:May | From:SeekIC

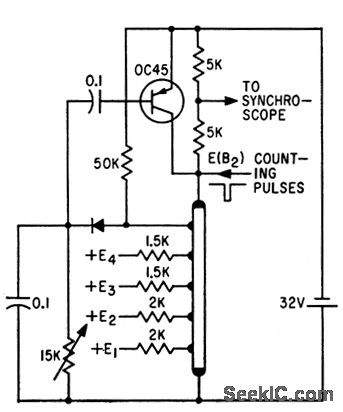

Experimental equivalent of cold-cathode counter tube, developed in Poland, cam serve also as staircase wave form generator. Although circuit shown, with five gm junctions on one side of n-type semi-conductor bur, gives only count of five before transistor restores initial state, decade counter would have ten junctions on bar.-A. Ambroziak, Semiconductor Analog of a Cold-Cathode Counter Tube, Electronics, 35:6, p 46-47.
